The SANSA Space Operations Programme specialises in a wide range of space mission support services. With over 60 years in operations the Hartebeeshoek facility has become one of the most sort after ground stations in the world. SANSA Space Operations operates and maintains more than 40 locally installed antennas and many ground stations on site.

The facility provides full-motion TT&C (telemetry, tracking, and command) antennas, and remote sensing systems across all frequency bands (and in S-band for mobile support).

The activities of the TT&C group at SANSA Space Operations are driven primarily by the needs of international clients. The operational efficiencies that these clients require have driven the consistently reliable performance of the Space Operations division at Hartebeesthoek, which has established itself as the most reputable TT&C tracking station on the African continent.

Products & Services

The Hartebeesthoek site operates around the clock and throughout the year to support satellite launches. The antenna systems are located across 40 secured locations on the 4000 ha site and are available in L, S, C, Ext C, X, Ku, DBS, and Ka frequency bands, as well as S-band for mobile support. Seven of the antennas are full-motion TT&C antennas.

The antennas at Hartebeeshoek facility can track satellite that covers an area over the Southern African continent from 3° to 50° south of the equator (as far north as Bujumbura in Burundi). They generate a wide variety of data and can transmit these as images that range from a low to a very high resolution.

SANSA regularly supports more than 30 launch support missions yearly. Our services include:

  • Launcher support
  • Spacecraft Low Early Orbit Phases (LEOP)
  • Emergency support
  • TOS (transfer-orbit support), and
  • IOT (in-orbit test)

The Hartebeeshoek facility has established itself as the most reputable Tracking, Telemetry, and Command (TT&C)  tracking station on the African Continent. The station has supported over 600 spacecraft in low-Earth orbits and high-altitude geostationary orbits, maintaining service levels at 100% always. The TT&C capabilities of the staff and facilities at Hartebeesthoek enables the station to support any ground segment requirements

The long-term operational experience at SANSA SO allows the organisation to provide clients with exceptional hosting and maintenance services. The team of highly skilled experts has capabilities in establishing, upgrading, and modifying ground segment facilities by providing the following:

  • Site identification,
  • Site surveys,
  • Project management,
  • System Engineering,
  • Architectural and Civil services,
  • Electrical and mechanical services, and
  • Infrastructure establishment.

Teleports are the ground-based side of the global satellite network. They provide terrestrial networks with access to satellite transponders in orbit 36,200 km above the Equator. Teleports are thus the channel by which a satellite can be integrated into complex networks involving fibre, microwave, wireless and mobile technologies in order to expand their reach beyond the edge of the network, broadcast one-to-many, or feed bandwidth-hungry applications.

We provide the following services:

Backbone Connectivity

  • 10GbE Point to Point Ethernet link to Teraco Isando Data Environment - Carrier Hotel
  • MPLS L3 VPNs to Teraco Isando Data Environment - Carrier Hotel
  • MPLS L2 VPNs to Teraco Isando Data Environment - Carrier Hotel
  • Direct Internet Connectivity

Antenna Hosting and equipment co-location

  • Hosting of Customer’s antenna
  • Equipment rack rental
  • Resilient power supply

Supporting Infrastructure

  • Spectrum protection
  • Resilient power supply
  • Remote-hands technical support
  • 24/7 monitoring and support

Hartebeesthoek antennas:

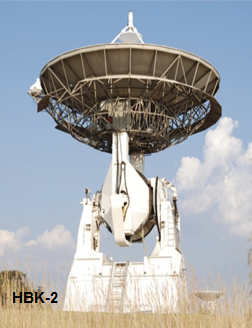

HBK-2: S-and Ext C-band antenna

HBK-2 Slew rate: 10°/sec
Dish diameter: 12m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Transmit 1
Frequency range: 6.8 – 7.2 GHz
EIRP: 88dBW Receive
Frequency range: 2.2 – 2.4 GHz
G/T: 22.4 dB/°K
Acquisition Aid ant: 1.07m 2.2 – 2.3 GHz only


Transmit 2
Frequency range: 2.025 – 2.15 GHz
EIRP: 69dBW

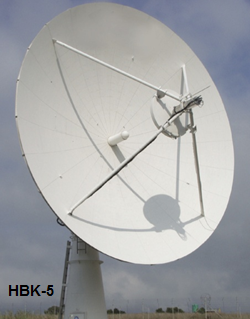

HBK-5: S, X-band antenna

HBK-5 Slew rate: 10°/sec
Dish diameter: 10m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP Receive
Frequency range:
Rx1: 2.2 – 2.4 GHz [G/T: 22.4 dB/°K]
Rx2: 8.0 – 8.5 GHz [G/T: 31.0 dB/°K]

Transmit
Frequency range: 2.025 – 2.10 GHz
EIRP: 65dBW

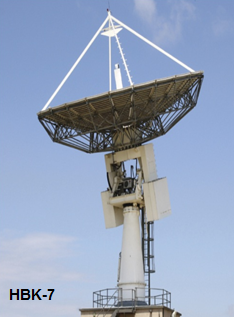

HBK-7: Ku/DBS-band antenna

HBK-7 Slew rate: 2°/sec
Dish diameter: 13.2m
Tracking mode: Program and Autotrack
Polarisation: Circular and Linear

Receive
Frequency range: 10.95 – 12.75 GHz
G/T: 38.25 dB/°K (@12.75 GHz) Transmit
Frequency range:
Tx1: 12.75 – 14.5 GHz
Tx2: 17.3 – 18.1 GHz


EIRP:
91dBW (@12.75 GHz)
92.6dBW (@17.5 GHz)

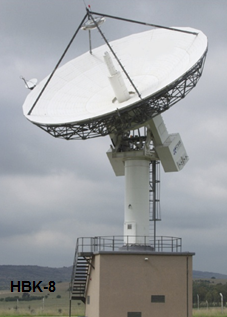

HBK-8: Ka-band antenna

HBK-8 Slew rate: 2°/sec
Dish diameter: 13.2m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Transmit 1
Frequency range: 29.5 – 30.0 GHz
EIRP: 92dBW Receive
Frequency range: 17.7 – 21.2 GHz
G/T: 41.8 dB/°K



Transmit 2
Frequency range: 27.5 – 31.0 GHz
EIRP: 87dBW

MO-1: S-band mobile antenna

MO-1 Slew rate: 20°/sec
Dish diameter: 15ft
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Receive
Frequency range: Rx1: 2.2 – 2.4 GHz
G/T: Rx1: 11.6 dB/°K

HBK-9: X-band antenna

HBK-9 Slew rate: 3°/sec
Dish diameter: 5.4m
Tracking mode: Program and Autotrack
Polarisation: RCP

Receive
Frequency range: 8.0 – 8.5 GHz
G/T: 30.5 dB/°K

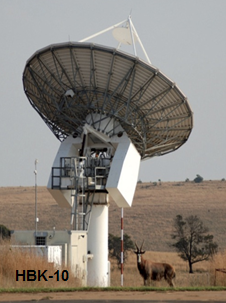

HBK-10: C-band (designated Pre-15T by Intelsat) antenna

HBK-10 Slew rate: 5°/sec Amzimuth, 1.4°/sec Elevation
Dish diameter: 11m
Tracking mode: Program and Autotrack
Polarisation: Circular

Receive
Frequency range: 3.625 – 4.2 GHz
G/T: 31.7 dB/°K

HBK-16: X-band antenna

HBK-16 Slew rate: 3°/sec
Dish diameter: 7.3m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Receive
Frequency range: 8.0 – 8.5 GHz

HBK-17: Ku-band antenna

Dish diameter: 9m
Tracking mode: Program and Autotrack
Polarisation: Linear and Circular

Receive
Frequency range: 10.95 – 12.75 GHz
G/T: 35 dB/°K

HBK-2

HBK-2 Satellite

HBK-2: S-and Ext C-band antenna

HBK-2 Slew rate: 10°/sec
Dish diameter: 12m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Transmit 1
Frequency range: 6.8 – 7.2 GHz
EIRP: 88dBW Receive
Frequency range: 2.2 – 2.4 GHz
G/T: 22.4 dB/°K
Acquisition Aid ant: 1.07m 2.2 – 2.3 GHz only

Transmit 2
Frequency range: 2.025 – 2.15 GHz
EIRP: 69dBW

HBK-5

HBK-5 Satellite

HBK-5: S, X-band antenna

HBK-5 Slew rate: 10°/sec
Dish diameter: 10m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP Receive
Frequency range:
Rx1: 2.2 – 2.4 GHz [G/T: 22.4 dB/°K]
Rx2: 8.0 – 8.5 GHz [G/T: 31.0 dB/°K]

Transmit
Frequency range: 2.025 – 2.10 GHz
EIRP: 65dBW

HBK-7

HBK-7 Satellite

HBK-7: Ku/DBS-band antenna

HBK-7 Slew rate: 2°/sec
Dish diameter: 13.2m
Tracking mode: Program and Autotrack
Polarisation: Circular and Linear

Receive
Frequency range: 10.95 – 12.75 GHz
G/T: 38.25 dB/°K (@12.75 GHz) Transmit
Frequency range:
Tx1: 12.75 – 14.5 GHz
Tx2: 17.3 – 18.1 GHz

EIRP:
91dBW (@12.75 GHz)
92.6dBW (@17.5 GHz)

HBK-8

HBK-8 Satellite

HBK-8: Ka-band antenna

HBK-8 Slew rate: 2°/sec
Dish diameter: 13.2m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Transmit 1
Frequency range: 29.5 – 30.0 GHz
EIRP: 92dBW Receive
Frequency range: 17.7 – 21.2 GHz
G/T: 41.8 dB/°K

Transmit 2
Frequency range: 27.5 – 31.0 GHz
EIRP: 87dBW

MO-1

MO-1: S-band mobile antenna

MO-1 Slew rate: 20°/sec
Dish diameter: 15ft
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Receive
Frequency range: Rx1: 2.2 – 2.4 GHz
G/T: Rx1: 11.6 dB/°K

HBK-9

HBK-9 Satellite

HBK-9: X-band antenna

HBK-9 Slew rate: 3°/sec
Dish diameter: 5.4m
Tracking mode: Program and Autotrack
Polarisation: RCP

Receive
Frequency range: 8.0 – 8.5 GHz
G/T: 30.5 dB/°K

HBK-10

HBK-10 Satellite

HBK-10: C-band (designated Pre-15T by Intelsat) antenna

HBK-10 Slew rate: 5°/sec Amzimuth, 1.4°/sec Elevation
Dish diameter: 11m
Tracking mode: Program and Autotrack
Polarisation: Circular

Receive
Frequency range: 3.625 – 4.2 GHz
G/T: 31.7 dB/°K

HBK-16

HBK-16 Satellite

HBK-16: X-band antenna

HBK-16 Slew rate: 3°/sec
Dish diameter: 7.3m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Receive
Frequency range: 8.0 – 8.5 GHz

HBK-17

HBK-17 Satellite

HBK-17: Ku-band antenna

Dish diameter: 9m
Tracking mode: Program and Autotrack
Polarisation: Linear and Circular

Receive
Frequency range: 10.95 – 12.75 GHz
G/T: 35 dB/°K

HBK-2

HBK-2 Satellite

HBK-2: S-and Ext C-band antenna

HBK-2 Slew rate: 10°/sec
Dish diameter: 12m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Transmit 1
Frequency range: 6.8 – 7.2 GHz
EIRP: 88dBW Receive
Frequency range: 2.2 – 2.4 GHz
G/T: 22.4 dB/°K
Acquisition Aid ant: 1.07m 2.2 – 2.3 GHz only

Transmit 2
Frequency range: 2.025 – 2.15 GHz
EIRP: 69dBW

HBK-5

HBK-5 Satellite

HBK-5: S, X-band antenna

HBK-5 Slew rate: 10°/sec
Dish diameter: 10m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP Receive
Frequency range:
Rx1: 2.2 – 2.4 GHz [G/T: 22.4 dB/°K]
Rx2: 8.0 – 8.5 GHz [G/T: 31.0 dB/°K]

Transmit
Frequency range: 2.025 – 2.10 GHz
EIRP: 65dBW

HBK-7

HBK-7 Satellite

HBK-7: Ku/DBS-band antenna

HBK-7 Slew rate: 2°/sec
Dish diameter: 13.2m
Tracking mode: Program and Autotrack
Polarisation: Circular and Linear

Receive
Frequency range: 10.95 – 12.75 GHz
G/T: 38.25 dB/°K (@12.75 GHz) Transmit
Frequency range:
Tx1: 12.75 – 14.5 GHz
Tx2: 17.3 – 18.1 GHz

EIRP:
91dBW (@12.75 GHz)
92.6dBW (@17.5 GHz)

HBK-8

HBK-8 Satellite

HBK-8: Ka-band antenna

HBK-8 Slew rate: 2°/sec
Dish diameter: 13.2m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Transmit 1
Frequency range: 29.5 – 30.0 GHz
EIRP: 92dBW Receive
Frequency range: 17.7 – 21.2 GHz
G/T: 41.8 dB/°K

Transmit 2
Frequency range: 27.5 – 31.0 GHz
EIRP: 87dBW

MO-1

MO-1: S-band mobile antenna

MO-1 Slew rate: 20°/sec
Dish diameter: 15ft
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Receive
Frequency range: Rx1: 2.2 – 2.4 GHz
G/T: Rx1: 11.6 dB/°K

HBK-17

HBK-17 Satellite

HBK-17: Ku-band antenna

Dish diameter: 9m
Tracking mode: Program and Autotrack
Polarisation: Linear and Circular

Receive
Frequency range: 10.95 – 12.75 GHz
G/T: 35 dB/°K

HBK-16

HBK-16 Satellite

HBK-16: X-band antenna

HBK-16 Slew rate: 3°/sec
Dish diameter: 7.3m
Tracking mode: Program and Autotrack
Polarisation: LCP and RCP

Receive
Frequency range: 8.0 – 8.5 GHz

HBK-10

HBK-10 Satellite

HBK-10: C-band (designated Pre-15T by Intelsat) antenna

HBK-10 Slew rate: 5°/sec Amzimuth, 1.4°/sec Elevation
Dish diameter: 11m
Tracking mode: Program and Autotrack
Polarisation: Circular

Receive
Frequency range: 3.625 – 4.2 GHz
G/T: 31.7 dB/°K

HBK-9

HBK-9 Satellite

HBK-9: X-band antenna

HBK-9 Slew rate: 3°/sec
Dish diameter: 5.4m
Tracking mode: Program and Autotrack
Polarisation: RCP

Receive
Frequency range: 8.0 – 8.5 GHz
G/T: 30.5 dB/°K
